| LOA | 9.15m | 30’0″ |
| LOD | 8.18m | 26’10 |
| LWL | 6.63m | 21’9″ |
| Headroom | 1.83m | 6’00” |
| Beam | 2.94m | 9’8” |
| Draught | 1.07m | 3’6″m |
| Displacement | 4.0 tonnes | 3.25 tons |
| Sail Areas (gaff rig) | 29.02 sqm | 312 sq ft |
| Sail Areas (bermudan rig) | 34.49 sqm | 371 sq ft |
Ballast 1.0 tonnes plus heavy keel box construction.
Recommended auxiliary power 20h.p. Diesel

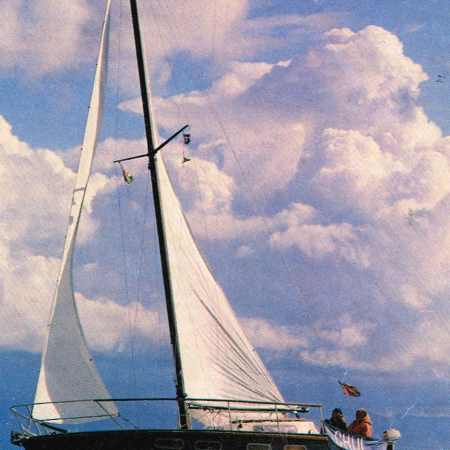

Developed from a successful range of traditional chine and multi-chine designs refined by Tucker Designs over the past 25years, the Brigand is a true cruising boat with long keel, transom/keel hung rudder and generous four berth accommodation in two completely separate cabins plus generous ship’s and personal storage space.
